Stage hoist is one type of electric chain hoist, also known as the electric stage hoist, light truss hoist or self-climbing electric hoist. It is specially designed for the hoisting of light stands, speaker groups, large scenery installations and hoists for large performances and is also suitable for the hoisting of other temporary mobile occasions.

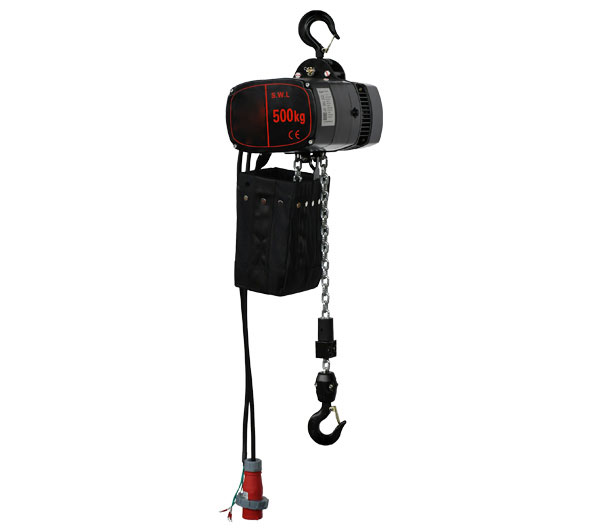

Dejun HGA8+ stage hoist is a kind of light and small lifting equipment. It consists of an electric motor, a transmission mechanism, and a sprocket, and meets the international standard of production. The body shape of the stage hoist is beautiful and durable. The inner gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears. Using the most advanced international technology, fine workmanship, and gear tight.
1. The new side exit design ensures quiet and smooth operation of the chain.
2. The hook is forged with alloy steel and equipped with an anti-decoupling device, which can rotate 360 degrees.
3. The built-in mechanical overload safety clutch prevents damage to the hoist body and chain caused by overload or topping.
4. The lifting sprocket is made of special alloy steel, and the five-chain socket design uses double-side bearings, which run smoothly and quietly.
5. Gear box adopts high-strength aluminum alloy die-casting integrated molding, light and strong, higher strength, good corrosion resistance.
6. The motor adopts an aluminum alloy stretched shell, a unique heat dissipation function to adapt to high-frequency operation, protection level of IP55.
7. Electromagnetic brake compact design, no brake coil failure, no need to replace the brake disc.
8. The coordination of mechanical auxiliary brake and pound magnetic brake can effectively ensure the braking effect.
| Model | Lifting Capacity (kg) |
Power Supply (v/3p) |
Lifting Height (m) |
Lifting Speed (m/min) |
Number of Chains | Diameter of Chain (mm) |
Power (kw) |
| HGA8+-0.5 | 500 | 220-440 | ≥10 | 5 | 1 | 6.3 | 1.1 |
| HGA8+-1.0 | 1000 | 220-440 | ≥10 | 4 | 1 | 7.1 | 1.5 |
| HGA8+-2.0-1 | 2000 | 220-440 | ≥10 | 4 | 1 | 10 | 3 |
| HGA8+-2.0-2 | 2000 | 220-440 | ≥10 | 2 | 2 | 7.1 | 1.5 |
| HGA8+-3.0 | 3000 | 220-440 | ≥10 | 4 | 1 | 11.2 | 3 |
When we build a stage for a live performance, we often need to install a lot of sound and lighting equipment on the truss to achieve a good overall stage effect. Therefore, the operator usually selects the stage electric hoist to operate, so why does everyone select it to carry out stage construction?
The shell of the electric stage hoist is made of special paint, which can reflect the stage light with a small probability, thus reducing the impact on the stage light effect. Low noise operation mode, so that it does not affect the on-site sound effect during operation. At the same time, its position is more hidden, which can enhance the effect of props while ensuring the stage effect. Therefore, electric stage hoist is the best choice for concerts.
Before quote to you, we need to know the basic information:
1. How many sets do you need?
2. Lifting capacity _ ton
3. Lifting height _ meters
4. Power supply: _V _HZ _Phase
5. Do you have any speed requirements?
6. Control model:control system or remote control?
7. Use indoor or outdoor?
Dejun company can provide you with electric stage hoist according to your work site and use place, please feel free to contact us to get the right stage rigging.
