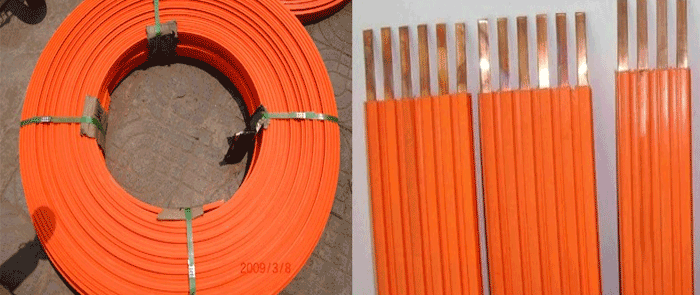

Seamless slide wire, produced with advanced technology, 3 pole, 4 pole, 6 pole with permanent electricity, power supply with oxygen-free copper, pressure drop force, better conductivity, and contact good, easy to install, not easy to wear, easy to replace, more convenient to transport, not easy to cause damage to the sliding contact line, and prolong the service life.

At present, DEJUN’s products are advanced in technology, exquisite workmanship, and beautiful in appearance. They are indeed ideal replacement products for the lifting industry system. They widely absorb the essence of science and technology, forge ahead, pioneer and innovate. The products have been serialized, standardized, and can be specially designed according to user requirements manufacture.

Features of seamless slide wire

•  The conductor is oxygen-free copper, which has good conductivity, pure quality, and bright colors.
•  Copper and plastic are in close contact, and there is no bad contact due to vibration
•  The insulator is impact resistant, anti-ultraviolet, special formula, good physical properties
•  No joints, small pressure drop
•  There are few parts, the electric rail is snap-in, easy to install, and the installation time can be saved by 2/3.

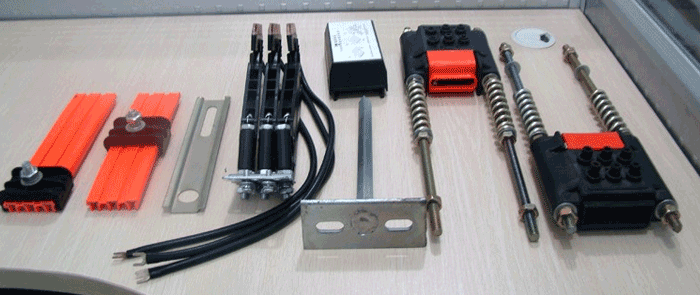

•  The collector frame has a long arm, equipped with an independent tension spring, and has a large movable arc.
• Use jointless installation, simple and time-saving, small space
• Made of special material, stable operation, fast speed and low noise.
• The installation bending radius is small, the minimum bending radius is 750mm.

Product features of seamless slide wire for actual use

•  Safety: The shell of the power supply sliding contact line is made of engineering plastics with high insulation performance. The enclosure protection level can be up to IP13, IP55 according to needs, which can protect against rain, snow and freezing attacks and the reach of hanging objects. The product has withstood a variety of environmental conditions. The insulation performance is good, and there is no harm to the maintenance personnel to touch the outside of the transmission conduit.
•  Reliability: The power transmission rail has excellent conductivity, fast heat dissipation, and uses high current density, low impedance value, and low line loss. The brush is made of metal graphite material with high conductivity and high wear resistance. The receiver can move flexibly and has good directional performance, which effectively controls the phenomenon of contact arc and string arc.
• Economy: The power supply sliding contact line device has a simple structure, and uses copper bars with high current density, low resistivity and low voltage loss as the conductive body. It can save about 6% of electricity, replace steel with plastic, and replace copper with plastic. The design is novel, no other insulation structure, no compensation wire, installed on the same side of the crane control room, saving installation materials and expenses, and its overall cost is compared with steel The bare slip line is roughly the same.
• Convenience: The power supply sliding contact line device integrates multi-level busbars in a conduit, and the assembly is semi-easy. The fixing bracket, connecting clamp, and suspension device are all supplied as common parts, and it is very convenient to assemble, disassemble, adjust and maintain.

Maintenance

In order to ensure the normal operation of the Seamless slide wire and prolong its service life, after the Seamless slide wire is put into operation, it should be regularly inspected and repaired.

• Electric brush: It should be checked every 1-3 months according to the usage of mobile electrical equipment. Focus on checking the wear of the collector brushes. If the wear is greater than or equal to 5mm, it must be replaced. If the brushes are found to be loose or worn out during the inspection, the cause should be found out and dealt with in time.
•  Collector: Check at least once every quarter. Focus on checking the fasteners for looseness, displacement, and wear of plastic parts and movable parts, and check the spring tension (the contact pressure between the collector brush and the guide rail should be maintained at a certain pressure (see the table below). If any problems are found, deal with them in time.
• Connecting parts: check at least once a year. Focus on checking whether the fastening bolts, welds, and supporting parts are loose, corroded, or displaced. If any problems are found, deal with them in time.
•  Daily inspection: Check the track for obvious deviation (greater than 20mm), misalignment, whether the insulation protection part falls off, breaks, or breaks, whether the stainless steel “v” groove is lifted; whether there is foreign matter on the track And conductive dust, etc. If necessary, check whether the insulation resistance meets the requirements (phase-to-phase insulation resistance should be ≥5MΩ).

Especially for the environment with large deviations of the driving track coincidence, gauge, inclination, frequent use, excessive dust in the workshop, high temperature, water, acid, alkali, fog, and outdoor use, it is necessary to strengthen daily inspection and maintenance.

If you need the slide wire for the crane, hoist or other equipment. Please don’t hesitate to contact us. As top three crane manufacture in China, can customize the design as client’s different requirements.
