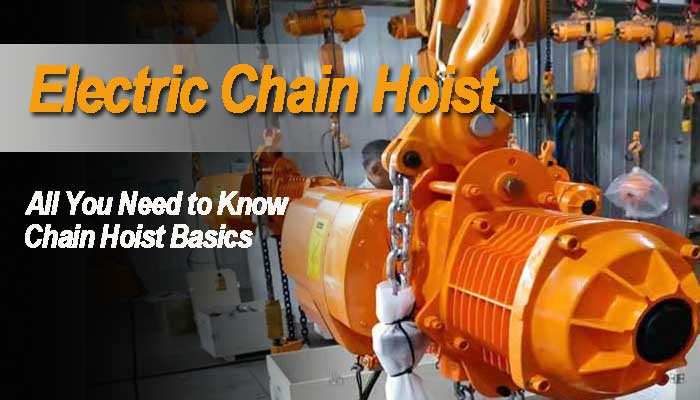

What is electric chain hoist ?

Electric chain hoists are used for lifting or lowering material. An electric powered motor and controller are applied to lift, decrease and boost up or slow down the velocity of the hoist. Electric hoists are best to be used in commercial manufacturing traces and small device stores wherein greater common and quicker lifting is required.

All chain hoists offer authentic vertical lift, that means the burden does now no longer range from the hoist centerline all through hoisting or decreasing.

Main specifications of electric chain hoists

No crane without hoists – they are the heart of all crane systems.

Main specifications of electric chain hoists

• Lifting Capacity:1t to 32t
• Lifting Height:6m to 48m
• Lifting Speed:0.4/1.2 to 2.4/11.8m/min
• Working Class:M3, M4, M5
• Ambient Temperature:-20℃ to 40℃

The standard electric chain hoist is provided with the capacity of 500 kg to 32 ton which can be customized with capacity up to 50 ton. The modular design allows a huge range of lifting speeds of up to 0.4/1.2 to 2.4/11.8m/min for hook paths of up to 48 m.
Electric powered chain hoists in day by day use at workstations ought to be robust, dependable and occasional-renovation. Precision lifting, safety slipping hold close and brief plug-kind connectors are as critical part of the standard configuration as is the attempted and examined long-lasting direct manipulate for sizes GM2, GM4 and GM6. More information, please feel free to contact us.

Application of electric chain hoists

Wide utility of electrical chain hoist is to make material handling much more efficient. Electric chain hoist is broadly utilized in molds, equipment manufacturing, warehousing logistics, shipbuilding, bridge production and different industries, factories and different unique uses.

Types of electric chain hoist

• Hook type – With constant hook at the top of electrical chain hoists shell which might be commonly utilized in constant lifting locations, consisting of freight elevators. Its benefit is that it’s far quite stable, however its downside is that it can’t run.
• Low headroom type _ broadly use in locations or workshops with restricted headroom, with capacity as much as 50 ton with process design.
• Electric trolley type –  with electric powered motorized trolley makes the horizontal touring extra green with lifting ability as much as 35 tons.
• Manual trolley type –  with a guide trolley, lifting ability from 500kg to twenty ton,

Main components of electric chain hoists

•

  Shell

  It is fabricated from light aluminum alloy shell, light however hard. The cooling fin is particularly designed to make sure short warmth dissipation with the rate as much as 40% and non-stop service. The crucial enclosed shape is relevant to locations like chemical plant and electroplate factory. Contact to get electric chain hoist parts.
•

  Motor

  Special designed for the electric chain hoist.  Maintenance free. Insulation class F. Protection class IP55.Side magnetic breaking system inside.Contact to get electric chain hoist parts.

•

  Electric trolley

  High strength low alloy steel structure, with electric motor and high-wearing feature wheels, compact and easy to install.Contact to get electric chain hoist parts.

•

  Chain

  The chain shall adopt the imported ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals .Contact to get electric chain hoist parts.

•

  Chain bag

  High wear resistance nylon material, store the lifting chain and prevent the chain from getting entangled with the main card or the chain when the chain is free to slide.Contact to get electric chain hoist parts.
•

  Hook

  It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap.Contact to get electric chain hoist parts.

•

  Electrics

  Chint brand, China famous brand, Inverse phase sequence protecting device.Contact to get electric chain hoist parts.
•

  Limit switch

  The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.Contact to get electric chain hoist parts.

•

  Pendant with cable

  Master Controller with waterproof Push Button for Up, Down, Forward, Reverse, start& Emergency Stop. It is light and durable..Contact to get electric chain hoist parts.

Working principle of electric chain hoists

Modern electric powered hoists consist of chain wheels or rope drums, using electricity for easy performance. They have a closed chain looking like a loop to facilitate the procedure of lifting a load.
For your construction and processing businesses, you could invest in these electric chain hoists. You have to pull the chain to simplify the weight lifting system. You must set up an electric hoist on an I-shaped steel-rolled beam with a preferred peak and span. There is a variation in the length of this I-beam, primarily based totally on the span and on the electrical hoist’s weight lifting capacity. The first functionality of an electric powered hoist is to turn on the hoist motor, carry the burden to a height, and move the trolley motor to transport the weight. To prevent the fall of the weight, there may be an electromagnetic brake on a lifting system. Electric chain hoists are powerful in shifting heavyweights from one site to another. You can do this with one push of a button. You do not want to interact an extremely good skillful operator to perform this user-pleasant system. Thus, you could save money, as you could avoid hiring professionals. The normal operations will become less expensive in the future.

Maintenance tips and proper usage instructions for electric chain hoists

We’ve proposed some rules for using chains to reduce dangers. You will avoid any mishaps if you inspect your equipment on a regular basis.

Before using the electric chain hoist, you should apply oil to your chain. Your usage determines how often you should lubricate your chain and how much oil you’ll need. The electric hoist chain moves at a speed of 2 to 15 meters per minute. The integrated braking mechanism guarantees that the chain rotates safely. Other instructions for these electric chain hoists can be found below.

• When you are not bodily fit, you must  not use the hoist.
• Your hoist works with safety devices, together with hook latch, load brakes, limit switch, and emergency forestall. Before the use of this hoist, you need to make certain you are well known about the electric chain hoist.
• Do not re-rate, adjust, and change the hoisting device.
• In an explosive setting, never use your standard electric hoist system.
• Never believe that one of the welding electrodes is the hoist.
• You must not leave the load unattended when lifting it.
• Lifting a load that exceeds the capability of your electric chain hoist is dangerous.
• The inching action must not exceed the motor’s rated start/stops limit.
• The load chain’s bottom hook, as well as the pendant button switch cable, must be vertically stable.

Choosing a reliable electric chain hoist

Finding a dependable manufacturer and supplier of electric chain hoists is one of the most critical stages. However, in order to make the best decision, it is also necessary to consider the considerations listed below.

• The weight of the cargo to be hoisted dictates which hoists you will need to purchase.
• Lifting speed must be calibrated in order for goods to be loaded and unloaded successfully.
• Your working environment- Some factory settings can abrade your machinery. For example, if the temperature is extremely high, your hoist may begin to malfunction. Similarly, extremely low temperatures cause interior part cracking and freezing. Temperature swings occur often.
• Hoist height- You wish to lift your load to a certain height. This is a key consideration when selecting a hoist model. A container with an electric hoist is available. A longer chain and a larger container are indicated by the increased height. However, having too many huge containers can become a stumbling block in your load lifting operation.
• The duty cycle specifies the length of time you will use the hoist. This aspect has something to do with how long you live. As a result, the duty cycle duration is critical, as your system must distribute heat from motors.

With 34 years experiences in hoist and crane design and processing, we are definitely can offer you the electric chain hoist you need. Please feel free to contact us to get the electric chain hoist you need.
