Introduction

Industrial jib cranes are the new light-duty material lifting equipment that improves productivity. It is also known as a cantilever crane, swing jib crane, slewing jib crane, and workstation jib crane. With high-reliability electric hoists equipped, industrial jib cranes are more suitable for short distances, frequent use, and intensive lifting operations. So, it is relatively popular in these industrial fields such as machining, warehouse logistics, workshop production, etc.

The lifting device of the industrial jib crane is suspended on the arm end or on the lifting trolley that can run along the slewing arm, and the slewing arm can turn but cannot pitch. The electric hoist runs a right and left straight line on the cantilever I-steel. The decelerating device drives the cantilever to turn, which has the characteristics of high efficiency, energy saving, trouble saving, small footprint, easy operation, and maintenance.

Working principle

The industrial jib crane is mainly driven by the motor drum, and the steel wire rope wrapped on the drum drives the lifting hook to carry out lifting movement, to realize the lifting of materials. Meanwhile, you can learn more about the main parts and how to choose industrial jib cranes here.

Different types of industrial jib cranes may differ in the specific driving method and structural design, but the basic working principle is similar.

Types of industrial jib cranes

BZ type floor mounted jib crane

BZ type floor mounted jib crane is composed of a pillar column and cantilever.  It is also known as a column-mounted jib crane, pillar-mounted jib crane, and freestanding jib crane, which is easy to install, has good stability, and is suitable for frequent lifting operations.

The foundation of jib crane is very important for safe operation. Here is about the foundation technical requirements of jib cranes.

Basic specification:

Available for designing and customizing according to your workshop. More on the BZ type floor mounted jib crane here.

Drawing :

BX type wall bracket jib crane

BX type wall bracket jib crane, also known as wall mounted jib crane, is installed on the wall to save space. It is suitable for the limited space of the workplace, especially suitable for use in the corner of the workshop. Meanwhile, you can learn more about how to install BX wall mounted jib cranes.

Basic specification:

Available for designing and customizing according to your warehouse. More on the BX type wall bracket jib crane here.

Drawing:

BB type wall travelling jib crane

BB type wall travelling jib crane is similar as BX type wall mounted jib crane. It is also installed on the wall. However, it has rails and can travel on the wall, and is especially suitable for high-rise buildings, factories and indoor and outdoor vertical and horizontal transport occasions.

Basic specification:

Available for designing and customizing according to your warehouse. More on the BB type wall travelling jib crane here.

Drawing：

Mobile jib crane

Mobile jib crane is also known as portable jib crane. Its bottom is equipped with wheels, which can move the position flexibly, adapt to the lifting work in different locations, suitable for large warehouses and other places where the storage location of goods is not fixed.

Basic Specification:

Available for designing and customizing according to your warehouse. More on the mobile jib crane here.

Drawing:

Articulating Jib crane

Articulating jib crane is one type of pillar mounted jib crane. Its arm can be folded to reduce the space occupied when not in use, and is suitable for places where space is limited and the lifting task has certain particularity.

Basic specification:

Available for designing and customizing according to your workshop.

Drawing:

Clients’ reference list of industrial jib cranes

2 sets 1 ton BZ type industrial floor mounted jib crane for the Indonesia client

Lifting capacity: 1 ton

Lifting height: 5m

Arm length: 7.5m

Motorized rotation: 360 degrees

Power supply: 380V 50HZ 3P

Electric brand: Schneider

Pictures of shipment:

BZ type industrial column-mounted jib crane for Sri Lanka client

Lifting capacity: 1 ton

Lifting height: 3.5m

Arm length: 6m

Motorized rotation: 180 degrees

Power supply: 380V 50HZ 3P

Electric brand: Schneider

Working Class:A5 (FEM2M)

Pictures of shipment:

5 ton BZ type industrial pillar-mounted jib crane with European type electric wire rope hoist for Oman client

Lifting capacity: 5 ton

Lifting height: 5m

Arm length: 7m

Motorized rotation: 360 degrees

Power supply: 400V 50Hz 3Phase

Ambient temperature: 50 degree

Insulation & Protection Class: IP65

Pictures of shipment:

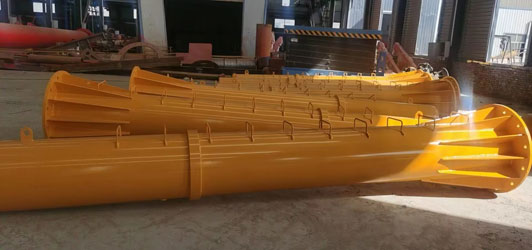

10 sets 5 ton BZ explosion industrial jib cranes for Uzbekistan client

Lifting capacity: 5 ton

Lifting height: 3.8m

Arm length: 4.02m

Motorized rotation: 360 degrees

Pictures of shipment:

1 set 1.5 ton BZ type industrial freestanding jib crane for Singapore client

Lifting capacity: 1.5 ton

Lifting height: 3 m

Arm length: 2m

Motorized rotation: 180 degrees

Power supply: 380V 50HZ 3P

Working class: A3

Insulation & Protection Class：IP55

Pictures of shipment:

3 ton BZ Industrial jib crane for Australia client

Lifting capacity: 3 ton

Lifting height: 3.5m

Arm length: 7.5m

Motorized rotation: 360 degrees

Power supply: 415V 50HZ 3P

Working class: A5

Insulation & Protection Class：IP54

Pictures of shipment:

1 set 1 ton BZ industrial floor mounted jib crane for Denmark client

Lifting capacity: 1 ton

Lifting height: 2.9m

Arm length: 4m

Motorized rotation: 360 degrees

Power supply: 380V 50HZ 3P

Pictures of shipment:

100 kg industrial articulating jib crane for Australia client

Lifting capacity: 100 kg

Lifting height: 1182mm

Arm length: 4665mm

Motorized rotation: 360 degrees

Power supply: 415V 50HZ 3P

The column adopts hydraulic motion, the rotation adopts electric motion, and the base adopts electric motion for 360 degrees rotation.

Pictures of shipment：

2 sets 2.5 ton BZ type industrial pillar-mounted jib crane for Zambia client

Lifting capacity: 2.5 ton

Lifting height: 2.546m

Arm length: 4m

Motorized rotation: 360 degrees

Power supply: 380V 50HZ 3P

Pictures of shipment:

1 ton European type Industrial freestanding jib crane for Kuwait client

Lifting capacity: 1 ton

Lifting height: 4m

Arm length: 3.5m

Motorized rotation: 360 degrees

Power supply: 400V 50HZ 3P

Standard: FEM2M standard

Working class: A5

Electric brand: Schneider

Pictures of shipment:

10 sets 3.2 ton BZ type industrial pillar-mounted jib cranes for Uzbekistan client

Lifting capacity: 3.2 ton

Lifting height: 5m

Arm length: 4m

Motorized rotation: 360 degrees

Power supply: 380V 50HZ 3P

Working class: A5

Electric brand: Schneider

2 sets 1 ton BZ type industrial column-mounted jib cranes and 3 sets 2 ton BZ type industrial floor mounted jib cranes for Kuwait client

Lifting capacity: 1 ton & 2 ton

Lifting height: 4m

Arm length: 4m

Motorized rotation: 360 degrees

Power supply: 240V 60HZ 3P

Working class: A3

Electric brand: Schneider

Insulation & Protection Class：IP44

Pictures of shipment:

1 set 0.5 ton BX type industrial wall bracket jib crane for Greece client

Lifting capacity: 0.5 ton

Lifting height: 3.5m

Arm length: 4m

Motorized rotation: 180 degrees

Working class: A5

Electric brand: Schneider

Pictures of shipment:

2 sets 2 ton BZ type industrial freestanding jib cranes and 3 sets 1.8ton BZ type pillar-mounted jib cranes for Serbia client

Lifting capacity: 2 ton & 1.8 ton

Lifting height: 5m

Arm length: 70 mm & 6505.70 mm

Motorized rotation: 360 degrees

Power supply: 380V 60HZ 3P

Insulation & Protection Class：IP54

Pictures of shipment:

2 sets 4 ton BZ type industrial column-mounted jib cranes for Brazil client

Lifting capacity: 4 ton

Lifting height: 6m

Arm length: 6m

Motorized rotation: 180 degrees

Working class: A5

Electric brand: Schneider

Power supply: 380V 60HZ 3P
